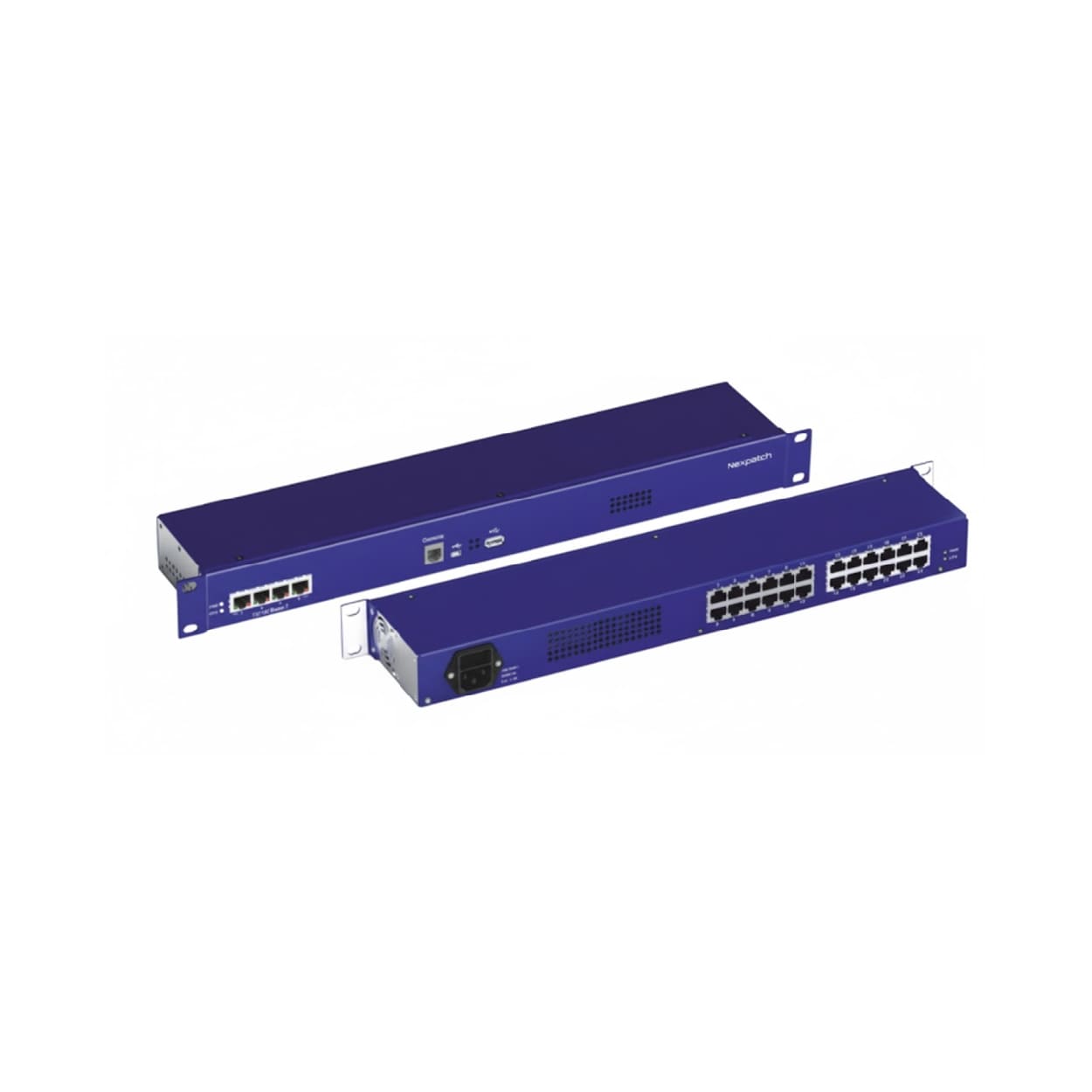

FEATURES

• Supports up to 24 Nexpatch Cards (for a maximum of 576 ports supported)
• For system-wide identification a unique ID code is used.
• Supports switch savings through the support of up to 4 ports.
• Data are collected from Nexpatch Cards and routed to agents upon request over TCP/IP network, private or public, for advanced security
• Supports a daisy-chain configuration using TCP/IP ports, enabling unlimited network growth.
• Collector can communicate with both copper and fibre intelligent panels through cards. It provides power to intelligent patch panels and records connectivity information.
• The collector communicates with collectors by cascading via UTP cable and effectively one collector can be connected to LAN and communicate to AIM software via Ethernet.
• The collector is a zero U device & when combined it support multiples of 576 ports without additional rack space.
• Multiple collectors can be cascaded with each other. An unlimited number of ports can be managed in a single patch zone.
• The collector is Low power consumption (11W), and a Low heat dissipation device.
• The 24 cards which can be connected to a single collector provide flexibility in connecting panels via UTP cable and the combined length of chords supports 4000 feet, enabling to the management of multiple panels in a patching room.
• An On-the-GO (OTG) mini-AB USB socket is included, enabling connection to an external device such as a tablet PC for work orders and switch learning.
• Host type A USB socket is included, enabling connection to a USB device such as a flash drive.
• The Tablet, which can be connected to Collector is a portable device that displays electronic work orders and guides the technician with visual information. The buzzer in panels provides sounds for connection and disconnection.
• The tablet provides visual information to identify the work order and is also used to learn ID keys.
• The collector monitors all patch panel connections and disconnections and such actions are reported in seconds to the software
• Patch panels are provided with a button. Each port has an LED on top that will sense the patch cord movement.
• Supports space saving installation, either as zero-U or 1U rack installation
• Nexpatch cards and Collector can be added to the network at a later stage and it allows the intelligent ready patch panel to work seamlessly without downtime.
